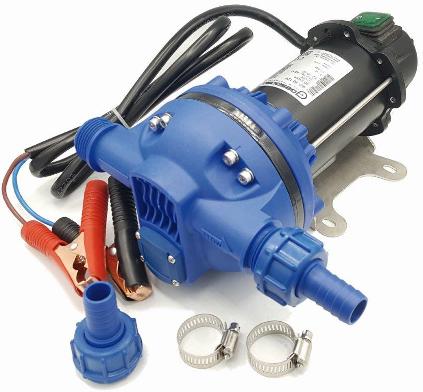

BD-30 DC

Self Priming Diaphragm AdBlue/DEF Transfer Pump

Codes

12Vdc: 02240-CF00000

24Vdc: 02241-CF00000

• Free Flow rate up to 30 l/min

• Delivery head up to 1.6 bar

• Self priming up to 2m

• Diaphragm pump,

• Construction in PA/SS & NBR/EPDM

• Ports M 1" G Threaded or 20mm hose tail  connection

• Internal recycle valve up to 3min

• Dry running up to 5min

• Motor:

  • 12V 180W 12A

  • 24V  180W  8A

• Duty cycle S2 - 20 min on/off

• Viscosities up to 20 cSt

• 40°C Maximum Liquid Temperature

• Suitable for:

  • Adblue / DEF

  • Water / Anti-freeze

  • Juices and Edible oils

  • Mild non-corrosive Liquids

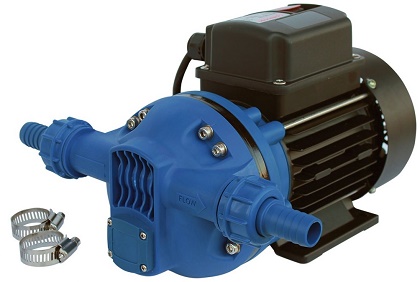

BD-30 230V

Self Priming Diaphragm AdBlue/DEF Transfer Pump

Codes: 02231-CF00000

• Free Flow rate up to 30 l/min

• Delivery head up to 1.6 bar

• Self priming up to 2m

• Diaphragm pump,

• Construction in PA/SS & NBR/EPDM

• Ports M 1" G Threaded or 20mm hose tail  connection

• Internal recycle valve up to 3min

• Dry running up to 5min

• Motor 0.37W - 0.7A

• Duty cycle S2 - 20 min on/off

• Viscosities up to 20 cSt

• 40°C Maximum Liquid Temperature

• Suitable for:

  • Adblue / DEF

  • Water / Anti-freeze

  • Juices and Edible oils

  • Mild non-corrosive Liquids
