HOSES & HOSE ACCESSORIES

EGC

Code:  807303020

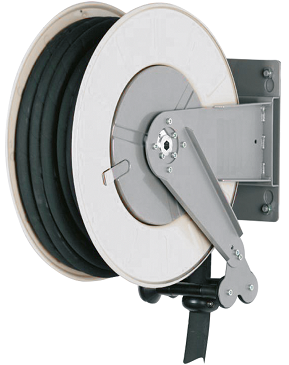

• Type: Automatic High Flow Hose Reel

• Spring-driven rewind.

• The delivery arm can be mounted in different positions.

• The wall bracket and the side frame are made in one single piece to increase the stability.

• Maximum hose reel pressure: 40 bar

• Suitable for antistatic double layer hoses;

  • Hose 20mm (Ø ¾”) - 15m Long Max.

  • Hose 25mm (Ø 1 ”) - 10m Long Max

  • Maximum hose pressure: 10 bar

  • Weight: 33 kg - With Hose (22 kg - No Hose )

• Dimensions: 310x530x490 mm (Length x Width x Height)

• Diesel  Oils   Water  & Compressed air
