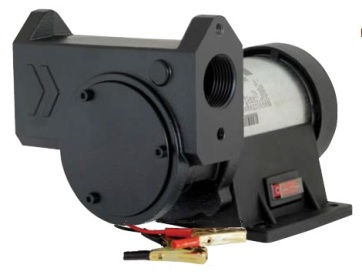

IRON-50 DC

General Purpose Diesel Transfer Pump

Codes:

   12Vdc: 00001-CF00000

   24Vdc: 00011-CF00000

• Vane: Eccentric self-adjusting blades

• Free Flow rate up to 50 l/min

• Delivery head up to 20m

• Self priming pipe Ø 1" or greater ;

  • Vertical up to 2.5m

  • Suction pipe length up to 4m



• F 1" G Threaded connection

• Internal recycle valve

• Internal 350 micron strainer

• Anti-rust treatment

• 300W - IP54

• Current;

  • 12Vdc Pump - 18 to 24 A

  • 24Vdc Pump -   9 to 17 A

• Protected by Internal Fuse

• S2 - 60 On/Off minutes duty cycles

• Fan cooled motor for prolonged use

• 2m Cable with clamps

• Weight 5 kg

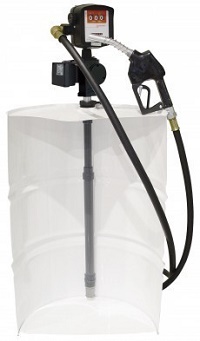

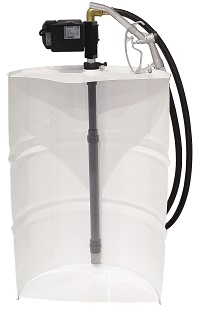

• OPTIONAL: Can be supplied as a drum kit.

Also Available for BIO Diesel

Code 12Vdc: 000000200

Code 24Vdc: 000100200

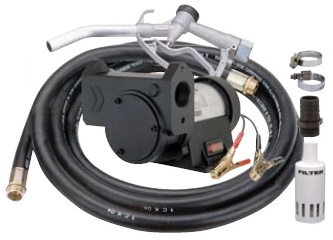

Also available in a kit;

Codes:

   12Vdc KIT: 14193-CF00000

   24Vdc KIT: 14193-CF00001

• IRON-50 pump

• PSF-040 manual nozzle

• 4m delivery hose

• 1m suction hose

• Clamps & fittings

• PP suction strainer
