TANK LEVEL PROGRAM

MECHANICAL INDICATOR

Code: 801901001

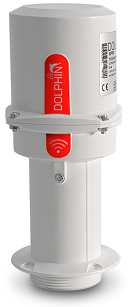

DOLPHIN LEVEL GAUGE

Code: 258200300

DOLPHIN DIESELPLUS FEE Code: 670800500

(App. Annual Access Licence Fee)

• Ultra Sonic Level Gauge, no physical contact with fluids

• Make periodic enquiry of the fluid level in your tank.

• Wireless Connectivity: GPRS (GSM SIM included)

• Level Viewing & Settings:

  • App: DieselPlus Tanks on Android or IOs

  • Website: www.dieselplus.net

• Suitable for any non-flammable fluids

• IP-66 weather proof

• Suited to Climates -10°C to +50°C

• Tank Depth: 100mm to 4000mm

• Upload Setting: 1 per hour or 2 per day

• Powered: 3.6 V lithium battery (4 years)

• Reading resolution: 5 mm ± 1% of mm

• DieselPlus Communication offers:

  • The reading of the tank level

  • Multiaccess from different devices

  • Minimum level alarms

  • Maximum level alarms

  • Filling alarms

  • Level drop alarms

  • Alarm history

  • Data export in *.csv or *.txt format

  • Grouping the tanks by zones, installations, ...

  • Making a register of inputs by supplier, cost, amount, ...

  • Automatic data reception of the tank state in your email

  • Having a supplier register

DOLPHIN LEVEL GAUGE

Code: 258200300

DOLPHIN DIESELPLUS FEE Code: 670800500

(App. Annual Access Licence Fee)

• GENIUS is a level monitor for atmospheric tanks.
• The level measurement is done by measuring the static pressure of the liquid height using a flexible tube into the tank.
• Measures the level in rectangular and cylindrical, horizontal or vertical, tanks with a maximum height of 4 m.
• Level reading in height (mm or inches) or volume (litres or gallons)
• It is suitable for liquids with a maximum viscosity of 30 cSt.
• NOT suitable for ATEX classified zone installation.

TECHNICAL FEATURES:

• Power: 230 Vac
• IP-55 Protection
• Accuracy: ±1 % in height
• Resolution: 5 mm
• Tank maximum height of 4 m
• Probe flex tube maximum length of 50m
• LCD display of 16x2 characters

• 5-key keyboard to access the kit menu

INPUT CONNECTIONS:

• Power supply cable for 230Vac

• Connection for the probe tube installed in the tank

OUTPUT CONNECTIONS:

• Connection cable of the two outputs for full or overfilled tank alarm and empty or minimum level
• RS-485 communication cable

Acoustic alarm in its inner of 90 dB and 2,400 Hz

Configuration of:

• Tank type and dimensions, calibration
• Level alarms
• Level reading type
• Measuring unit

• According to the programmed alarm levels, the control unit will activate or deactivate the contacts, acting as a remote switch for the alarm device operation or the connected control kit operation.
• PC communication kit through the RS-485 communication port
• Connection to PC or GK-7 controller or similar

· 110 VAC · 15-32 VDC

• PC communication with desktop software GKSuite or communication to DieselPlus cloud software.
• Communication to any PLC or external device via MODBUS RTU

WA Alarm Level

• Ultra Sonic Level Gauge, no physical contact with fluids.

• For diesel, oil, water and ADBLUE storage tanks.

• Quick and easy to install.

• Constantly measuring the level of fluid in the tank.

• Suitable for steel or plastic tanks:

  • Minimum diameter 600mm

  • Measures tanks up to 3 meters high.



• The TRANSMITTER:

  • Fitted to a 2" opening on the top of the tank.

  • Battery Operated.



• The RECEIVER:

  • Can be located up to 200m away.

  • Mains powered 230V.

  • LCD screen, Liquid level display.

  • Alarm When fluid drops below 10% of level.

  • Alarm When rate of drop exceeds 3cm/min.

    (Leak or Theft Warning).
