MGE-110

Oval Gear High Accuracy Electronic Volume Meter

Code: 32600-CF00000

• Flow rates;

  • Diesel from 5 to 110 l/min

  • Oils from 5 to 80 l/min

• Operating pressures up to 50 bar

• Actuation: Oval gears

• Display Digital:

  • Partial 5 digits (99 999 litres) Resettable,

  • Cumulative History 5 digits Permanent

• Aluminium body, with Ryton gears

• Viscosities up to 2000 cSt

• ± 0.5% Accuracy or better with proper installation.

• Liquid temperatures from -10 to 60 °C

• 1" Gm connections with 4 different flow directions

• Flanged to connect directly to IRON and AG pumps

• Private Use Only, not for the commercial resale of fuel or Oil

• Suited to diesel and oils

• Also available on request in PVC, MGE-110 Blue

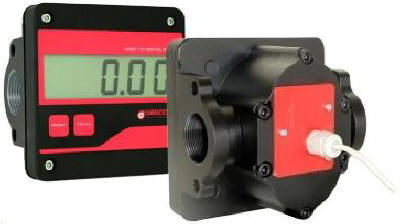

MGE/I-110

Oval Gear High Accuracy Electronic Meter & Pulser

Code: 32602-CF00000

• Display Digital:

  • Partial 5 digits (99 999 litres) Resettable,

  • Cumulative History 5 digits Permanent

• Flow rates:

  • Diesel from 5 to 110 l/min

  • Oils from 5 to 80 l/min

• Operating pressures up to 53 bar

• Actuation: Oval gears.

• Aluminium body.

• Viscosities: 2 - 2000 cSt

• ± 0.5% Accuracy or better with proper installation.

• Pulses: 2 channels - 41 pulses per channel · total of 82 pulses per litre

• Liquid temperatures from -10 to 60 °C

• 1" Gm Thread & Flanged connections

• Private Use Only, not for the commercial resale of fuel or Oil

• Suited to diesel and oils

MGI-110

Oval Gear High Accuracy Pulse Meter

Code: 32650-CF00000 - 180° Reed

• 2x Potential free reed switches (2 channels)

• Maximum Input Rating;

  • Power 8W

  • Voltage 28Vdc

  • Current 100mA

• Channels at 180° out of phase

• Pulses: 2 channels - 41 pulses per channel · total of 82 pulses per litre.

• Flow rates:

  • Diesel from 5 to 110 l/min

  • Oils from 5 to 80 l/min

• Operating pressures up to 53 bar

• Actuation: Oval gears

• Aluminium body.

• Viscosities: 2 - 2000 cSt

• ± 0.5% Accuracy or better with proper installation.

• Liquid temperatures from -10 to 60 °C

• 1" Gm Thread & Flanged connections

• Private Use Only, not for the commercial resale of fuel or Oil

• Suited to diesel and oils
